Design Pattern Knowledge System

2025-05-01 825 words 4 minutes

Contents

Design Pattern is a summary of code design experience that is repeatedly used, known to most people, and practiced by countless engineers. It is a highly refined and templated version of object-oriented thinking. The purpose of using design patterns is to make the code more reusable, more flexible and scalable, and easier to read and understand.

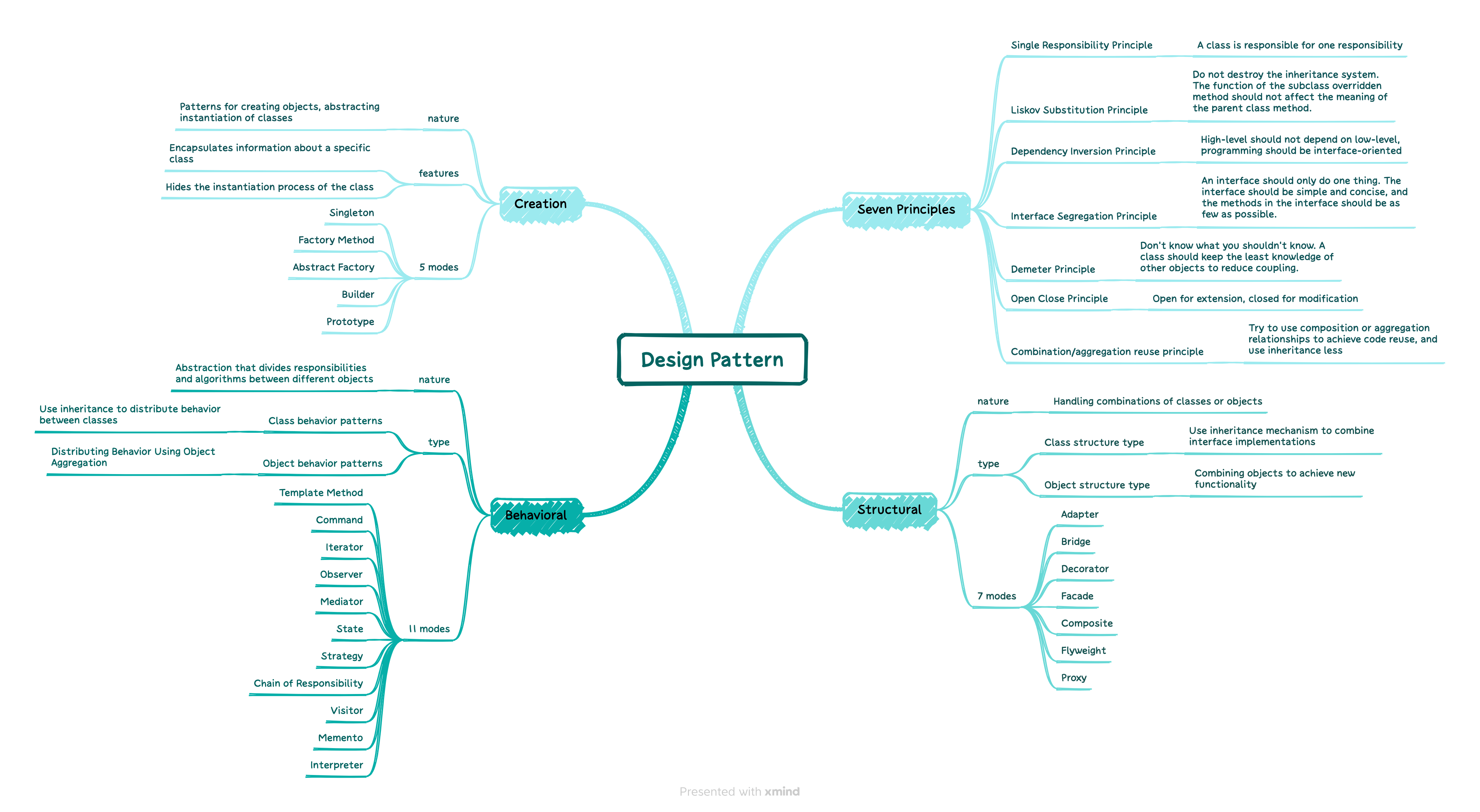

Seven development principles

development principles	induction	purpose
Single Responsibility Principle	A class is responsible for one responsibility	Easy to understand and improve code readability
Liskov Substitution Principle	Do not destroy the inheritance system. The function of the subclass overridden method should not affect the meaning of the parent class method.	Preventing inheritance flooding
Dependency Inversion Principle	High-level layers should not depend on low-level layers, programming should be interface-oriented	More conducive to upgrading and expanding the code structure
Interface Segregation Principle	An interface should only do one thing. The interface should be concise and simple, with as few methods as possible.	Functional decoupling, high aggregation, low coupling
Law of Demeter	Don’t know what you shouldn’t know. A class should keep the least knowledge of other objects to reduce coupling.	Reduce code bloat
Open/Closed Principle	Open for extension, closed for modification	Reduce new risks brought by maintenance
Combination/aggregation reuse principle	Try to use composition or aggregation relationships to achieve code reuse, and use inheritance less	Reduce code coupling

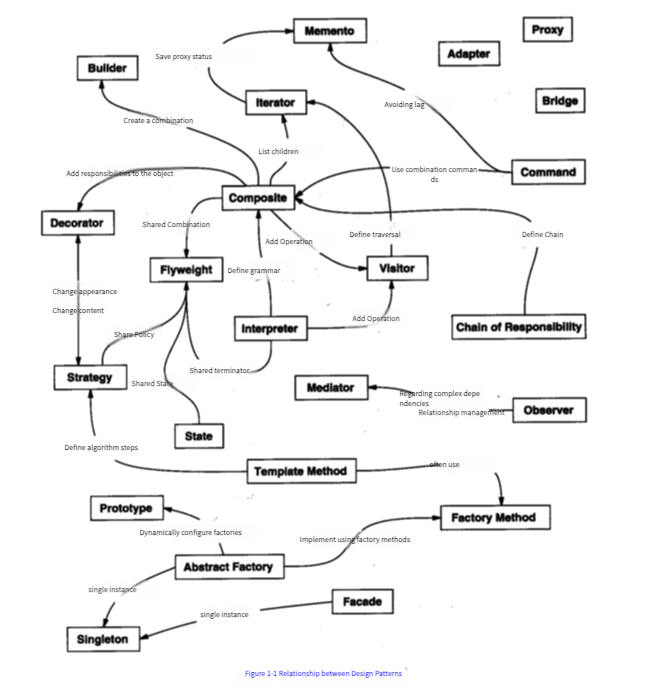

24 design patterns

Creational Patterns

Singleton Pattern: Ensures that a class has only one instance and provides a global access point for that instance.
Factory Method Pattern: It defines an interface for creating objects, but it is up to the subclass to decide which class to instantiate; the factory method defers the instantiation operation to the subclass.
Abstract Factory Pattern: It creates a family of objects, that is, many objects instead of one object, and these objects are related, that is, they must be created together; the factory method pattern is only used to create an object, which is very different from the abstract factory pattern.
Builder Pattern: encapsulates the construction process of an object and allows step-by-step construction.
Prototype Pattern: Use a prototype instance to specify the type of object to be created, and create a new object by copying this prototype.

Structural Patterns

Adapter Pattern: Converts the interface of a class into another interface expected by the client; adapters allow classes with incompatible interfaces to work together seamlessly; object adapters use composition, and class adapters use multiple inheritance.
Bridge Pattern: Use the Bridge pattern to allow implementation and abstraction to change independently by placing them in two different class hierarchies.
Decorator Pattern: Dynamically attach responsibilities to objects. To extend functionality, decorators provide a more flexible alternative to inheritance.
Facade Pattern: It provides a unified interface to access a group of interfaces in a subsystem, making the subsystem easier to use.
Flyweight Pattern: Uses sharing to support a large number of fine-grained objects, some of which have the same internal state; it allows an instance of a class to be used to provide many “virtual instances”.
Composite Pattern: Allows you to combine objects into a tree structure to represent a “whole/part” hierarchy; Composite allows clients to handle individual objects and object combinations in a consistent manner.
Proxy Pattern: Provides a stand-in or placeholder for another object to control access to it.

Behavioral Model

Template Method Pattern: defines the skeleton of an algorithm in a method, and defers some steps to subclasses; the template method allows subclasses to redefine certain steps in the algorithm without changing the algorithm structure.
Command Pattern: enclose “requests” into objects so that other objects can be parameterized using different requests, queues or logs; command mode also supports revocable operations.
Iterator Pattern: Provides a way to sequentially access the elements of an aggregate object without exposing its internal representation.
Observer Pattern: defines a one-to-many dependency between objects, so that when an object changes state, the objects that depend on it will be notified and automatically updated.
Mediator Pattern: Use the Mediator pattern to centralize complex communication and control methods between related objects.
State Pattern: allows an object to change its behavior when its internal state changes. The object appears to have changed its class.
Strategy Pattern: Defines a family of algorithms, encloses them separately, and allows them to be interchangeable. This pattern allows the algorithm to change independently of the client using the algorithm.
Chain of Responsibility Pattern: Create a chain of objects for a request; each object checks the request in turn and processes it or passes it to the next object in the chain.
Visitor Pattern: Use the Visitor pattern when you want to add new capabilities to a composition of objects and encapsulation is not important.
Memento Pattern: When you need to return an object to a previous state (for example, your user requested “undo”), you use the memento pattern.
Interpreter Pattern: Use the Interpreter pattern to create an interpreter for a language, usually defined by the language’s grammar and syntax analysis.
